Dimensions
Maximum height2408 mm
Minimum position−390 mm
Maximum reach1540 mm
Base Dimensions780*750mm
Base Height610mm
Max Motion Range3180mm
'/%3e%3cpath%20d='M557.71,209H532.32V69h25.39Z'%20transform='translate(0.11%200)'/%3e%3cpath%20d='M727.34,198.2a12.4,12.4,0,0,1-1,5.08,13,13,0,0,1-2.73,4.05,12.42,12.42,0,0,1-4.05,2.69,12.89,12.89,0,0,1-5,1,13.77,13.77,0,0,1-4.74-.88,11.05,11.05,0,0,1-4.25-2.84l-92.77-96.87V209H587.4V79.84a12.2,12.2,0,0,1,2.19-7.08A13.67,13.67,0,0,1,595.21,68a12.83,12.83,0,0,1,7.42-.73,12,12,0,0,1,6.54,3.56L702,167.64V69h25.39Z'%20transform='translate(0.11%200)'/%3e%3cpath%20d='M782.42,209H757V69h25.39Z'%20transform='translate(0.11%200)'/%3e%3c/svg%3e)
U-MOCO MINI Cinematic Robotic Arm
Unleash Creativity, No Limits
01Compact, powerful, and made for creative studios
02220V household power for worry-free shooting
03Fast, expressive camera movements for dynamic shots
04Endless creative possibilities for people and product videos
Specifications
Core dimensions, motion performance, and operating environment

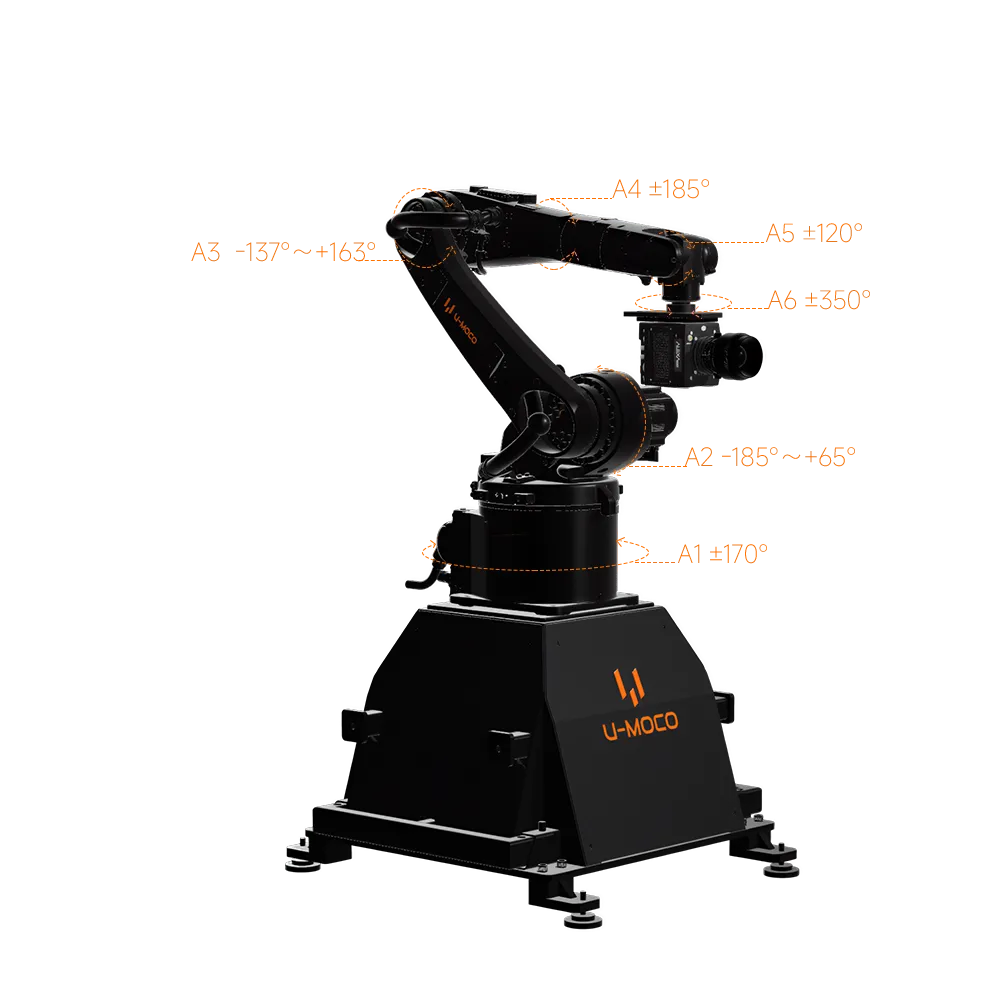

Axis Limits
A1±170°
A2-185°～+65°
A3-137°～+163°
A4±185°
A5±120°
A6±350°
Performance
Maximum rotational linear speed4.3 m/s
Stable speed2 m/s
Maximum linear speed3 m/s
Rated payload10 kg
System weight (configuration dependent)≈412 kg
Repeatability±0.04 mm
Power & Environment
Power input220 V
Input current10 A
IP RatingIP65
Operating temperature0–55 °C

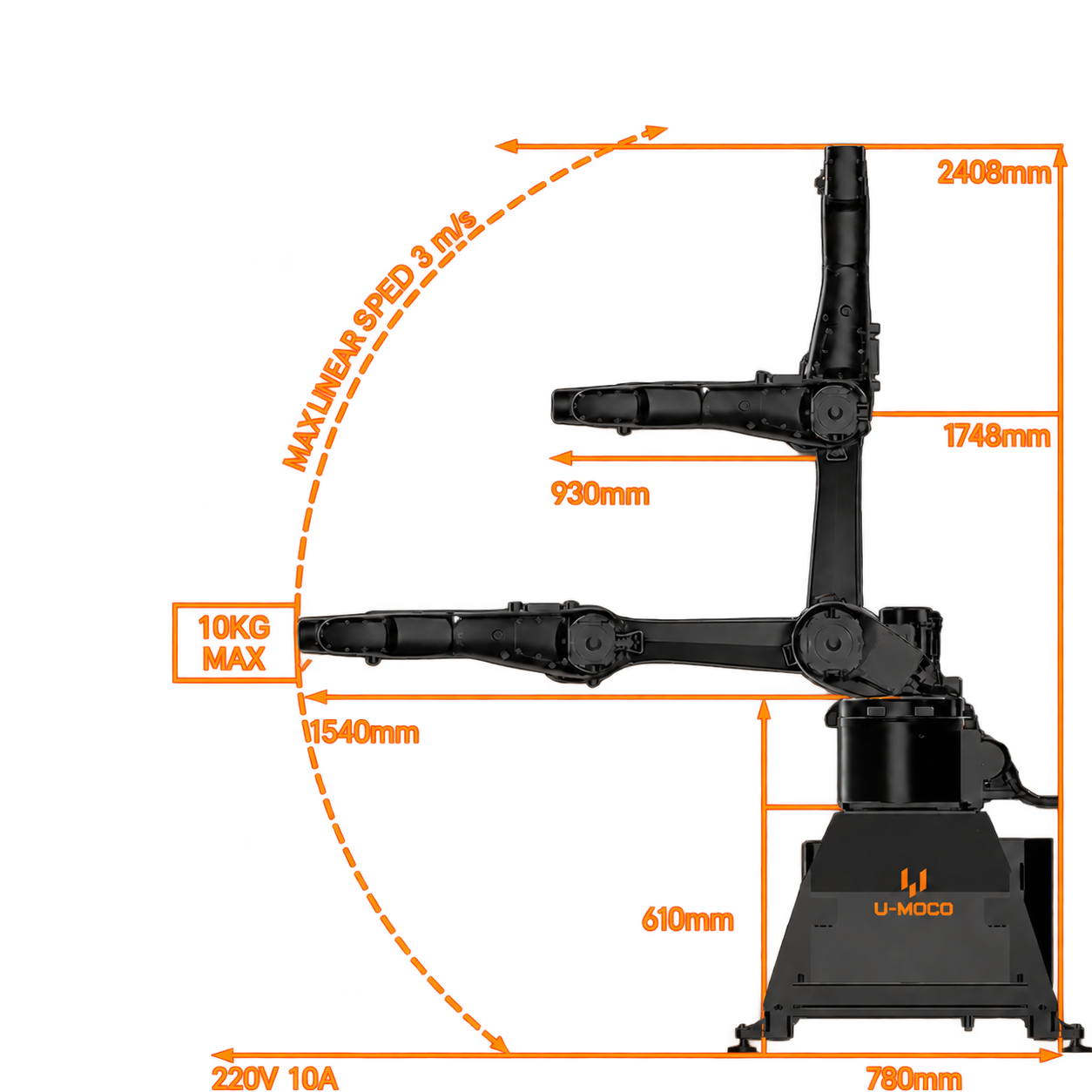

Dimension Diagrams
