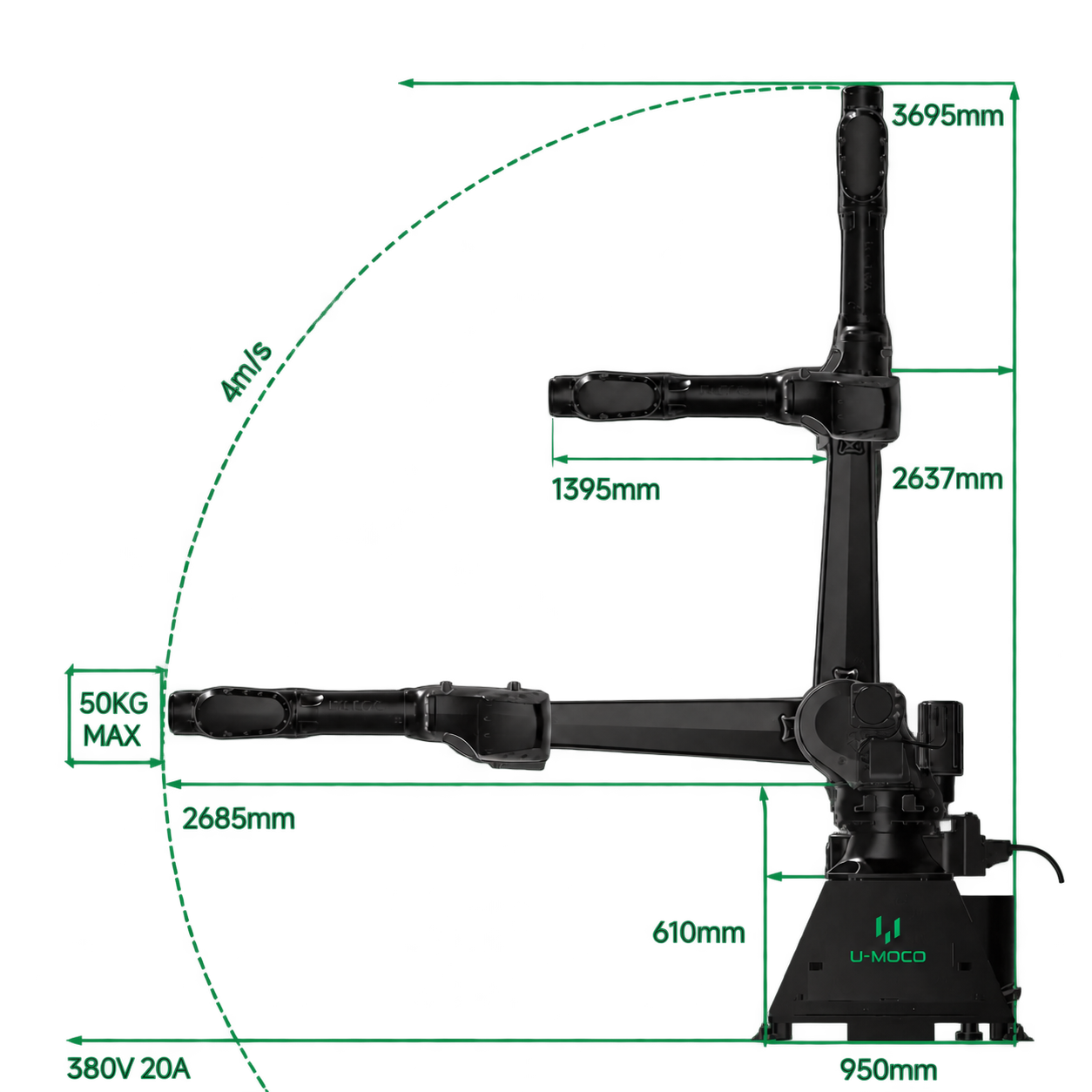

Dimensions
Max Height3695mm
Min Position-1200mm
Maximum reach2685 mm
Base Dimensions950*919mm
Base Height610mm
Working Volume42.76m³
'/%3e%3cpath%20d='M638.82,114a51.82,51.82,0,0,1-2.15,15.53,43.83,43.83,0,0,1-5.81,12.06,40.89,40.89,0,0,1-8.45,8.93,51,51,0,0,1-10,6.11A48,48,0,0,1,601.85,160a50.43,50.43,0,0,1-10,1.08l53,45.8H605.61l-52.93-45.8H534.42V135.73h57.42a29.45,29.45,0,0,0,8.74-2,21.85,21.85,0,0,0,6.84-4.35,18.53,18.53,0,0,0,4.44-6.59,23.43,23.43,0,0,0,1.56-8.84v-16a7.84,7.84,0,0,0-.53-3.28A4,4,0,0,0,611.52,93a4.11,4.11,0,0,0-1.76-.63c-.62-.06-1.19-.1-1.71-.1H524.26V206.92H498.87V79.67a13,13,0,0,1,3.67-9.08,12,12,0,0,1,4-2.73,13.07,13.07,0,0,1,5.08-1h96.38A30.61,30.61,0,0,1,622.41,70a29.16,29.16,0,0,1,9.52,7.71,30,30,0,0,1,5.27,10,35,35,0,0,1,1.62,10.06Z'%20transform='translate(0.11%200)'/%3e%3cpath%20d='M811.28,150.28a61.54,61.54,0,0,1-4.4,23.53,54.81,54.81,0,0,1-30.71,30.72,61.41,61.41,0,0,1-23.29,4.34H718.5a61.78,61.78,0,0,1-23.34-4.34,55.2,55.2,0,0,1-18.55-12.16,56.31,56.31,0,0,1-12.26-18.56,61,61,0,0,1-4.44-23.53V123.52A61.09,61.09,0,0,1,664.35,100a55.69,55.69,0,0,1,12.26-18.56,56.27,56.27,0,0,1,18.55-12.16,61,61,0,0,1,23.34-4.39h34.38a60.67,60.67,0,0,1,23.29,4.39,56.26,56.26,0,0,1,18.5,12.16A55.12,55.12,0,0,1,806.88,100a61.64,61.64,0,0,1,4.4,23.48Zm-25.39-26.76a37,37,0,0,0-2.4-13.62,29.49,29.49,0,0,0-17.18-17.19,36.62,36.62,0,0,0-13.43-2.39H718.5A36.84,36.84,0,0,0,705,92.71a30.66,30.66,0,0,0-10.5,6.74,29.86,29.86,0,0,0-6.79,10.45,37.15,37.15,0,0,0-2.39,13.62v26.76a37.15,37.15,0,0,0,2.39,13.62,29.77,29.77,0,0,0,6.79,10.45,30.52,30.52,0,0,0,10.5,6.74,36.63,36.63,0,0,0,13.52,2.39h34.18a36.69,36.69,0,0,0,13.53-2.39,30.52,30.52,0,0,0,10.5-6.74,29.61,29.61,0,0,0,6.78-10.45,37,37,0,0,0,2.4-13.62Z'%20transform='translate(0.11%200)'/%3e%3c/svg%3e)
U-MOCO PRO Cinematic Robotic Arm
Precision Tool for Specialized Shots
012.7m reach for full wide-angle panoramic control
02Rated payload 50 kg for professional camera systems
03Ultra-low vibration for flawless macro detail
04Extreme speed, built for any challenge
Specifications
Core dimensions, motion performance, and operating environment

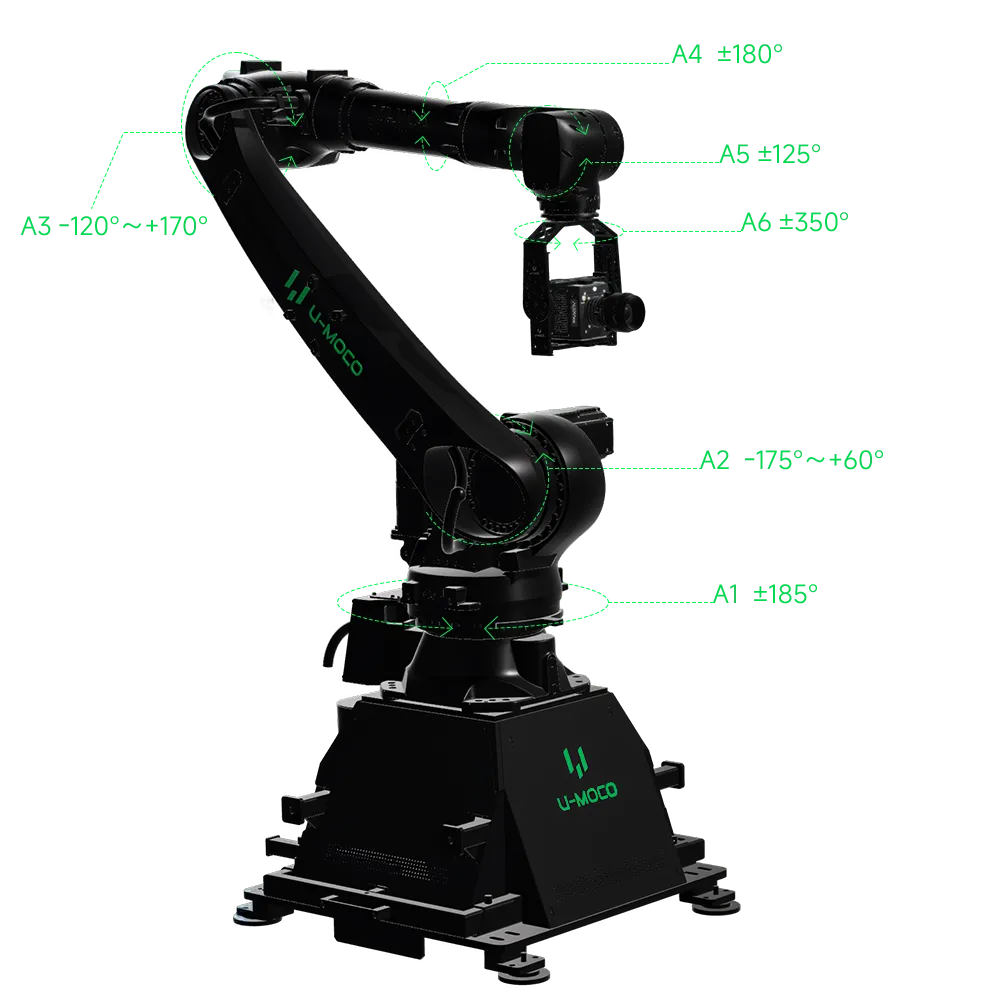

Axis Limits
A1±185°
A2-175°～+60°
A3-120°～+170°
A4±180°
A5±125°
A6±350°
Performance
Maximum rotational linear speed7.4 m/s
Stable speed2 m/s
Maximum linear speed4 m/s
Rated payload50 kg
System weight (configuration dependent)≈968 kg
Repeatability±0.05 mm
Power & Environment
Power input380 V
Input current20 A
IP RatingIP65
Operating temperature0–55 °C
Annotated Diagram
